Fifty-six years of steel in stock.

Ali Al-Nassar & Partners Co. is the Kingdom's stockist of record for pipes, flanges, fittings and valves — supplier to most of Saudi Arabia's major oil and gas projects, and a six-division industrial group serving 130+ approved major clients from Al-Khobar since 1970.

⌀ 32.00 ⌀ 29.50 B.C. 20 × ⌀1⅜″ HOLES EQ. SP. 1.88 NPS 24 W.N. FIG. 1 — 24″ CL 150 WELD-NECK FLANGE, R.F. SECTION X-X
ASME B16.5 — DIMENSIONS IN INCHES — FROM CURRENT STOCK — SCALE NTS
DWG NO.ANP-70-001
REV56
SHEET1 OF 1
FIRST ISSUE1970 — AL-KHOBAR
SCALENTS
DATE—
STATUSISSUED FOR CONSTRUCTION
SCOPE OF RECORDSTOCKIST — PIPES · FLANGES · FITTINGS · VALVES

SECTION A-A — ZONE B-2 — SCALE: 56 YEARS TO ONE TABLE

Revision history

سجل المراجعات
  1. This drawing has been in continuous revision since 1970, when Nasir Othman Al-Nassar established a trading house in Al-Khobar to supply a young Saudi industry with materials it could stake a project on.
  2. Each revision recorded here is fifteen years of work: the growth into the Kingdom's leading stockist of pipes and piping components for oil and gas, the diversification into five further divisions, and the quality system that now governs all of it.
  3. The current issue stands at Revision 56 — one revision per year of operation since first issue.
APPROVED BY — FOUNDING INTENT, 1970
“To build a commercial entity that upholds itself to the delivery of the best products to our valued customers.”
NASIR OTHMAN AL-NASSAR — FOUNDERناصر عثمان النصار
REVDATEDESCRIPTIONBY
△001970INITIAL ISSUE — TRADING HOUSE ESTABLISHED, AL-KHOBARN.O.A.
△151985LEADING STOCKIST TO THE KINGDOM'S OIL & GAS MEGAPROJECTS — YARDS, EASTERN PROVINCE—
△302000DIVERSIFIED — FIRE PROTECTION · STRUCTURAL STEEL · WATER TREATMENT · TECHNICAL FABRICS · REAL ESTATE—
△452015QUALITY MANAGEMENT SYSTEM CERTIFIED — ISO 9001:2015Q.C.
△562026CURRENT ISSUE — 130+ APPROVED MAJOR CLIENTS · SIX DIVISIONS · VISION 2030 IN FORCE—
27
YEARS — AVG. CLIENT RETENTION
SEE Q.C. NOTE 2 — ZONE D-6
130+
APPROVED MAJOR CLIENTS
SEE PROJECT REGISTER, ZONE C-5

SECTION B-B — ZONE B-3 — SIX DIVISIONS, ONE STANDARD OF SUPPLY

Details 1–6

الأقسام الستة
1 DETAIL 1 — FOUNDING DIVISION — DWG P-100

Oil & Gas Piping

The group's original trade and still its backbone: seamless and welded pipe, butt-weld fittings, flanges and valves held in yard stock for the Kingdom's energy projects — supplied to most of Saudi Arabia's major oil and gas developments.

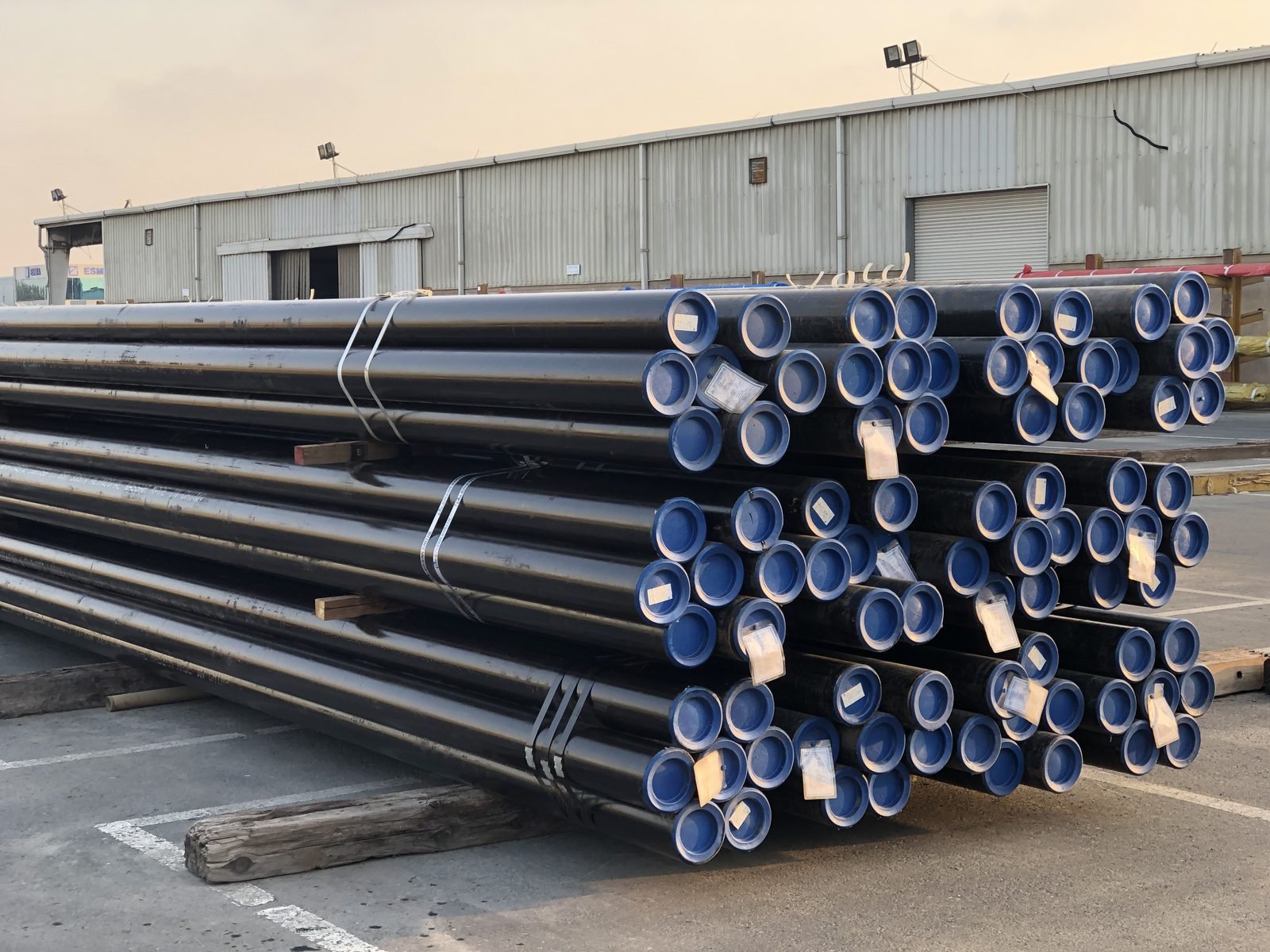

YARD ROW — SMLS API 5L GR.B END VIEW — STACKED ON TIMBER
REPRESENTED MILLS: SUMITOMO · BENKAN · VELAN · KITZ · ULMA FORJA · MEGA · TECNOFORGE · OMB · INTERFIT
2 DETAIL 2 — DWG F-200

Fire Protection

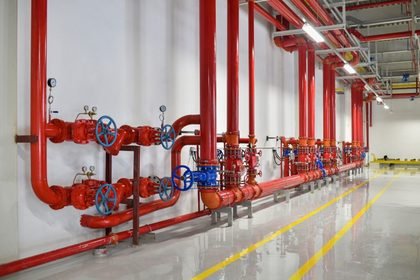

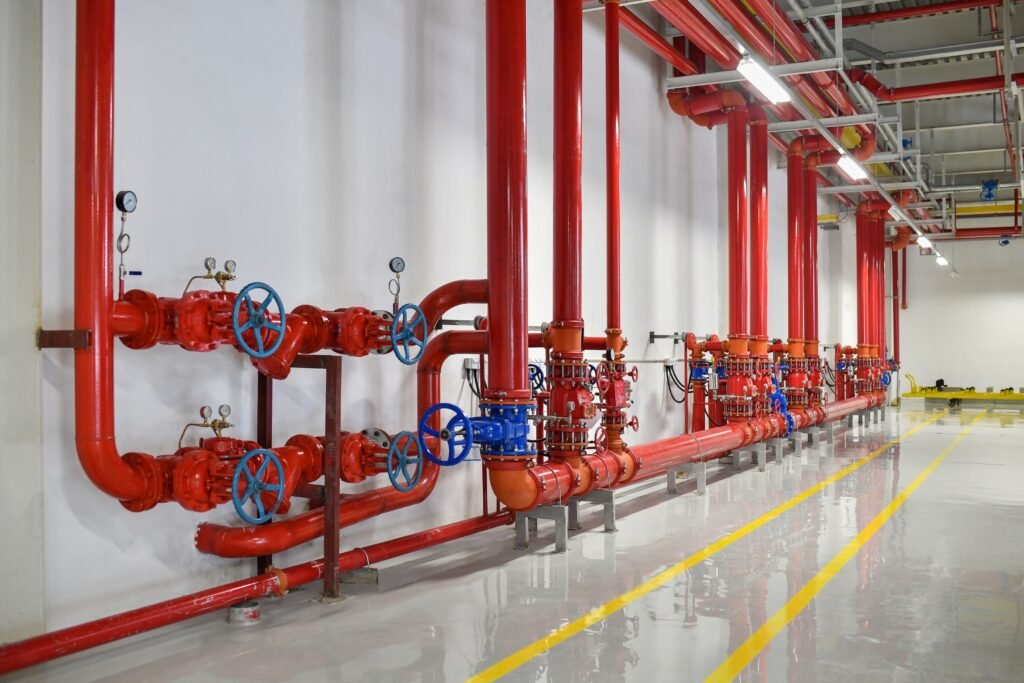

Complete fire-line supply: sprinklers, alarm check valves, grooved ductile-iron fittings, AFFF foam concentrate 3% & 6%, cabinets, hangers and accessories.

½″ NPTDEFLECTOR
BRANDS: CRANE · PEGLER · SAUDI STEEL PIPE · LIFECO · WEFLO · AL JAZEERA
3 DETAIL 3 — DWG S-300

Structural Steel

Structural sections and steel supply for industrial and commercial construction across the Kingdom.

W-SECTION
4 DETAIL 4 — DWG W-400

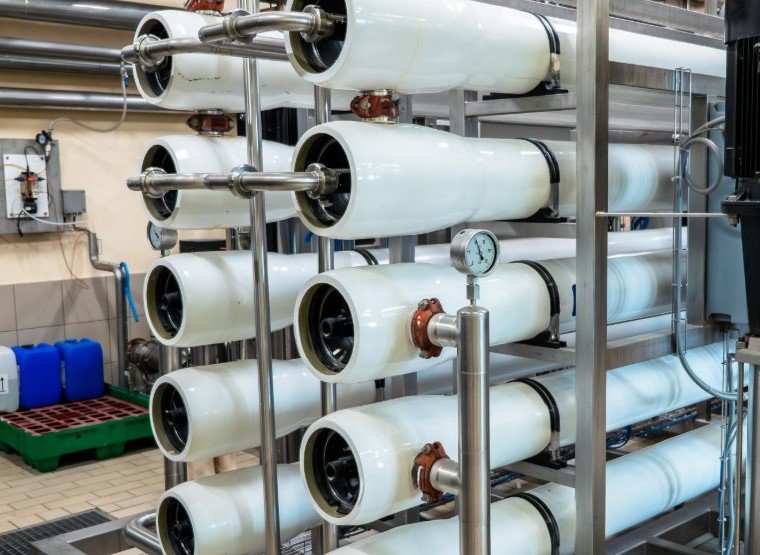

Water Treatment

Equipment and materials for water and wastewater treatment infrastructure.

N1 — INN2 — OUT
5 DETAIL 5 — DWG T-500

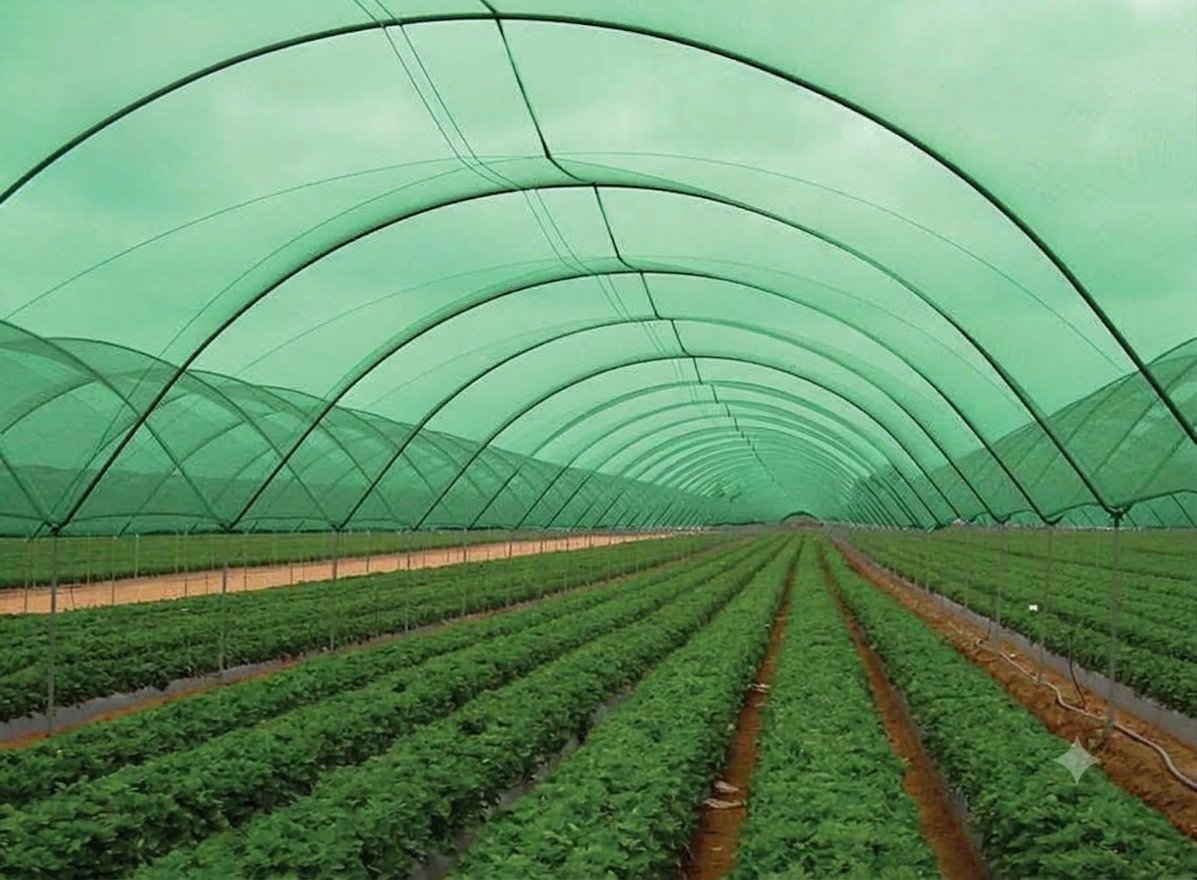

Technical Fabrics

Specialist technical fabrics supplied for demanding industrial applications.

PLAIN WEAVE — SECTION
6 DETAIL 6 — DWG R-600

Real Estate & Property Management

The group's investment arm: real-estate development and property management across the Eastern Province.

NPLOT PLAN

SECTION C-C — ZONE C-4 — EVERY NUMBER BELOW IS HELD IN YARD STOCK

Bill of materials

جدول المواد
ITEMDESCRIPTIONSIZE RANGERATINGSTANDARD

FIG. 2 — STOCKED RANGES, CHAIN-DIMENSIONED ½″ – 48″ · POINT AT OR TAB TO A BOM ROW TO READ ITS SPAN

FIG. 3 — NOMINAL BORES AT TRUE RELATIVE SCALE — ½″ IS THE DOT AT FAR LEFT

STOCKED: EASTERN & WESTERN PROVINCE YARDS · COMPUTERIZED INVENTORY · TIME-STAMPED F.I.F.O. RESPONSE · MILL CERTIFICATES ON REQUEST

SECTION D-D — ZONE C-5 — 27 YEARS AVG. RETENTION ACROSS THE REGISTER

Project register

سجل العملاء
REG NO.APPROVED CLIENTSECTORSTATUS

SECTION E-E — ZONE D-6 — QUALITY CONTROL

Quality control

ضبط الجودة
  1. Quality management to ISO 9001:2015 governs every operation of the company, from mill procurement to yard dispatch.
  2. Every inquiry is time-stamped on arrival and answered first-in, first-out. No project waits behind a larger one — a discipline our clients have relied on for an average of 27 years.
  3. Full material traceability. Mill test certificates to EN 10204 type 3.1 accompany supply on request; the specimen below shows the chemistry limits we check against for SA-106 Gr. B seamless pipe.
MILL TEST CERTIFICATE — EN 10204 TYPE 3.1 (SPECIMEN EXTRACT)SA-106 GR. B
ELEMENTCMnPSSi
LIMIT, %≤ 0.300.29 – 1.06≤ 0.035≤ 0.035≥ 0.10

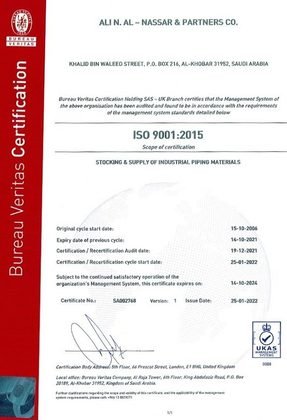

QUALITY MANAGEMENT SYSTEM · ISO 9001 : 2015 · INSPECTED APPROVED
